ATVISION Videoscopes
ATVISION series of multifunctional videoscope offers impeccable video quality for inaccessible areas in tubes, pipes, bores, engines, castings, etc. It has a flexible probe with high-definition 3600 articulating camera at tip with ceramic based light source for necessary illumination.
ATVISION ensures detection of surface discontinuities, like cracks, deposits, corrosion, wear & tear, etc. It plays vital role in detection of inner surface discontinuities and monitoring the assets integrity in HVAC, chemical, oil & gas industries. It also serves automotive, aerospace industries for inspection of hard to reach areas.
Salient Features
- High Definition 1080P/720P image/ video quality.
- 5” IPS (in plane switching) colour display allows viewing at lower angle
- 3X zoom capability.
- 3600 omni directional bending (articulation)
- Wireless transmission of image/video for multiscreen viewing
- Long lasting batteries(8 hours of operation with 2 fully charged batteries)
- Real time temperature display, with high temp alarm function
Kit Contains:
- Videoscope with carry case
- 16GB TF card
- Card reader
- Battery charger
- USB Cable
- Certificate of Conformance & Operation Manual

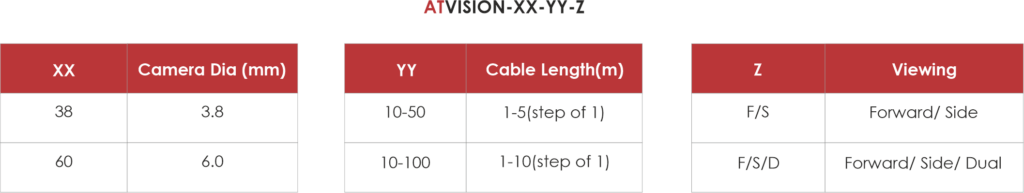

Order Part Nos:
FAQs
2) What are the applications of Videoscopes?
Ans: Videoscope is a device used for remote visual inspection of inaccessible areas of several engineering components & equipment like tubes, pipes, engines, castings, forgings, exchangers, etc.
3) How do I choose the right videoscope?
Ans: selection of videoscope depends upon factor such as:
- Length & Diameter of Probe: ATVISION offers two camera diameters 3.8 & 6 mm and length from 1-5meters in 3.8mm and 1-10meters in 6mm.
- Camera resolution: ATVISION offers high-definition image quality, as per your need you can select 1080p/720p/480p resolution.
- Lightning source available: Camera has LED light source with adjustable intensity in 5 steps, for your need.
- Portability: The equipment weighs only 0.75kg with battery but system weight depends on diameter and length of probe.
- Durability: Camera is designed for dry and wet environments. Delicate camera need to be protected from dropping on hard surfaces.
4) What is the articulation angle of ATVISION?
Ans: ATVISION has 1800 articulation in 3600 directions.
5) What is Battery life?
Ans: Fully charged single battery produces continuous 4+ hr. of operation. With 1 additional spare battery, 8 hr. of continuous operation can be achieved .
6) Is it safe to use this device in liquid environment?
Ans: Yes, the camera is IP68 certified which offers safety against water and dirt.
7) What camera arrangement does ATVISION offers?
Ans: Camera arrangement in forward & side viewing are available. Kindly review brochure for specific details.
8) Can I record and store the video?
Ans: Yes, device has 16GB TF card which can store images/videos, which can be transferred either by WIFI or through CARD transfer.
9) Where can I get it repaired?
Ans: Arora Technologies has well trained and technically qualified strong customer support team which takes care of all the repair activities.
