Ultrasonic Pulser Receiver APR-20
The Microprocessor Based Ultrasonic Pulser Receiver Model APR-20 is a compact, high-performance instrument designed for precise flaw detection, material characterization, and laboratory research. Equipped with a powerful pulser and low-noise broadband receiver, it delivers exceptional signal clarity and repeatability for a wide range of ultrasonic transducers.
APR-20 is compatible with other Ultrasonic Instruments and allows great flexibility when configuring systems for high frequency application or for attenuative materials.

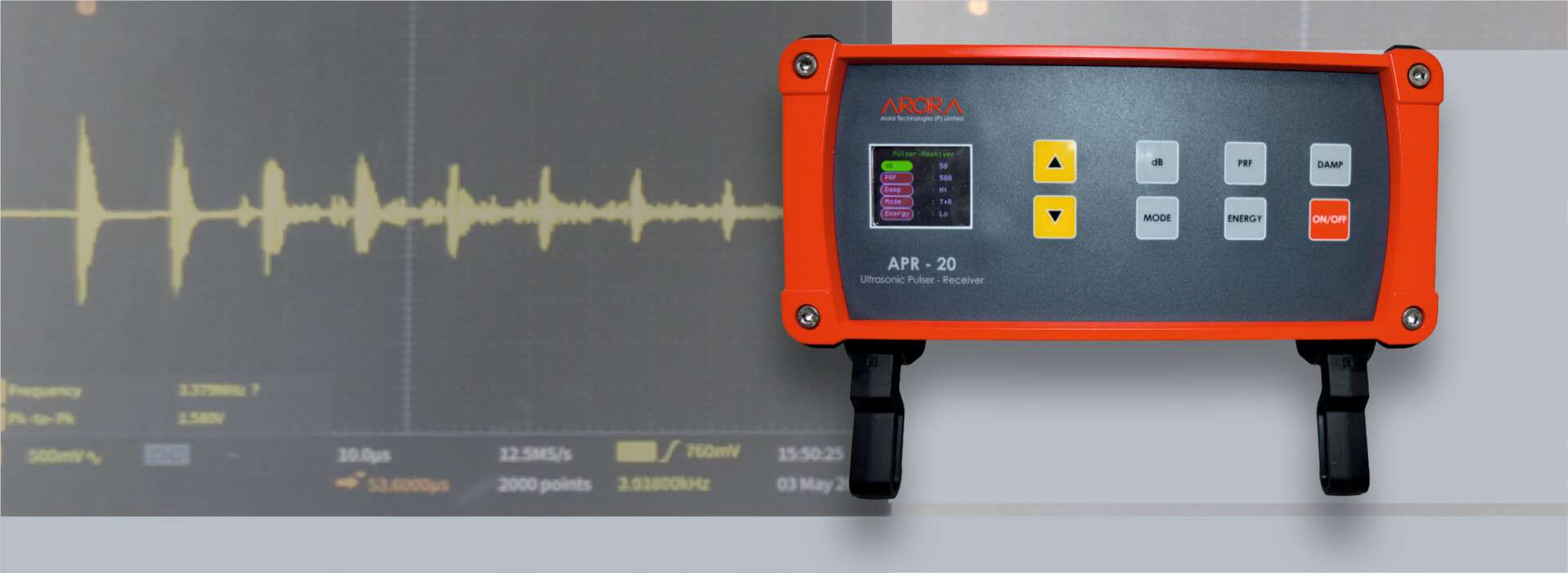

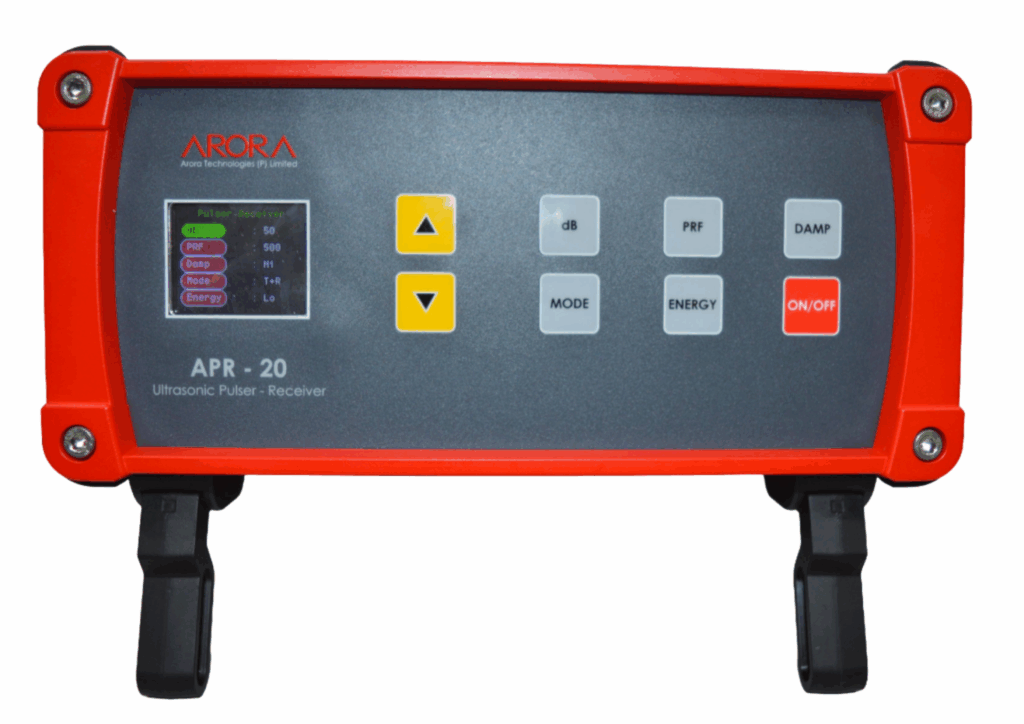

The front panel keypad allows the operator to choose parameters such as Gain, Damping, Mode, Energy etc precisely which are shown on the TFT display. BNC connectors are provided at the back for output and input connections.
Salient Features:
- High voltage broadband pulser for superior signal penetration
- Low-noise, wide dynamic range receiver for accurate signal capture
- Adjustable gain, damping, and pulse repetition controls
- Compatible with longitudinal and shear wave transducers
- Ideal for NDT, academic, and R&D applications discontinuities
Technical Specifications:
Pulser
Pulser Type | Negative Spike Pulse |
Pulse Amplitude | 100V & 450V (Hi/Low selectable) |
Damping | 50 Ω & 1,000Ω |
Receiver
Operating Mode | Pulse echo, Through transmission and Dual Crystal |
PRF | 500HZ to 1000HZ |
Bandwidth | 0.5 to 20MHZ |
Gain | 0 to 110dB in 1dB step |
Output Impedance | 50 Ω |
Output Voltage | ±2.5V into 50 Ω |
Unit Specifications
Power | 230V 50Hz AC |
Dimensions | 244 mm x 230 mm x 127 mm |
Weight | 2.3 Kg |
Operating Temperature | -45°C to 85°C |

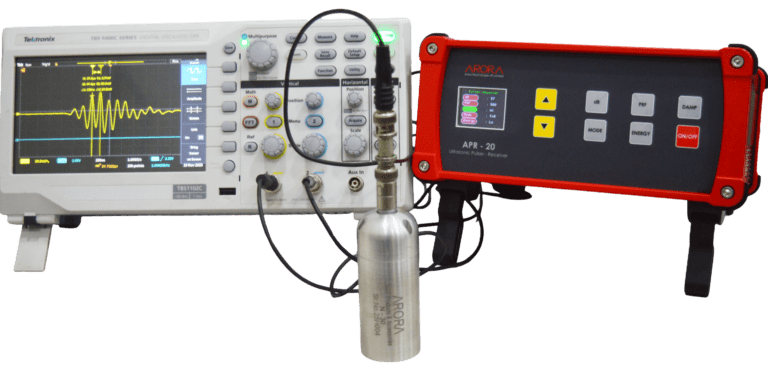

N30 Signal
2 MHZ Signal

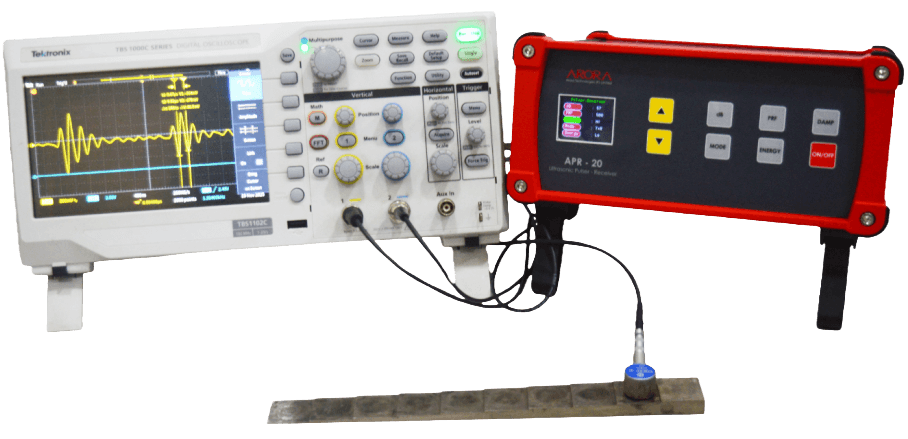

4 MHZ Signal

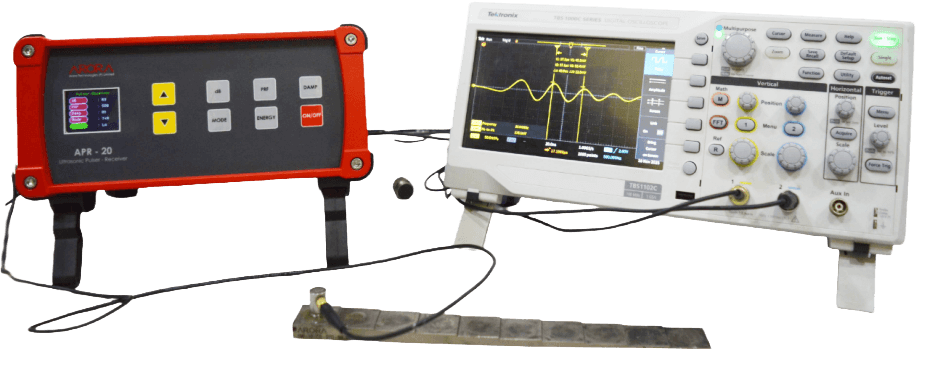

20 MHZ Signal
