Plates & Coils
NORDISCAN-PL
Equipment for automatic ultrasonic examination of plates with TR phased array UT probes
Salient Features
- Phased array base
- Perfect signal-to-noise ratio
- High and smooth sensitivity
- Wide range of thicknesses
- Small untested zones
- Meets most of international standards & specifications

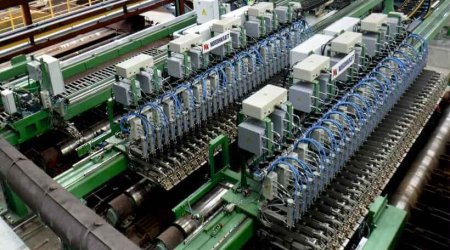

In Line
Specifications of plates to be tested
- Width 500 – 6000 mm
- Thickness 3 – 250 mm
- Material – carbon steel etc.
- Temperature from +0 °C to +80 °C
- Length 3 – 100 m and more
- Test speed of up to 1.5 m/s
- Test capacity – up to 80 plates/hour (for 12 m long plates)
Off-Line
Specifications of plates to be tested
- Width 500 – 6000 mm
- Thickness 3 – 250 mm
- Material – carbon steel etc.
- Temperature from +0 °C to +80 °C
- Length 1 – 50 m
- Plates are on the floor or on the roller conveyor
- Test capacity – up to 12 plates/hour (for 12 m long plates)
EMATEST-PL
Equipment for automatic ultrasonic examination of plates with EMAT (non-contact UT-probe)
Salient Features
- Small untested zones
- Test capacity – up to 80 plates/hour (for 12 m long plates)
- Meets most of the requirements of international standards & specifications
- EMAT based, non-contact
- High and smooth sensitivity
- Wide range of temperatures
In Line
Specifications of plates to be tested
- Width 500 – 6000 mm
- Thickness 3 – 60 mm
- Material – carbon steel etc.
- Temperature from -20 °C to +600 °C
- Test speed of up to 1.5 m/s
- Length 3 – 100 m and more
Off-Line
Specifications of plates to be tested
- Width 500 – 6000 mm
- Thickness 3 – 60 mm
- Material – carbon steel etc.
- Temperature from -20 °C to +600 °C
- Test speed of up to 1.5 m/s
- Length 1 – 50 m
- Plates are on the floor or on the roller conveyor
EMATEST-Coil
Equipment for automatic ultrasonic in-line examination of coils with EMAT (non contact UT-probe)
Salient Features
- EMAT based, non-contact
- High and smooth sensitivity
- Wide range of temperatures
- Small untested zones
- Meets most of the requirements international standards & specifications
Specifications of coil to be tested
- Length 3 – 100 m and more
- Width 500 – 4000 mm
- Thickness 3 – 30 mm
- Material – carbon steel etc.
- Temperature from -20 °C to +600 °C
- Test speed of up to 2.0 m/s
NORDISCAN-PL-HS
Equipment for automatic examination of plates and coils for HARD SPOTS
Salient Features
- Type of probe – PEC (pulse eddy current probe)
- Perfect signal-to-noise ratio
- High and smooth sensitivity
- Minimal hard spot to be detected 10 mm x 10 mm or less
- No influence of rolling scale
- No influence of residual magnetization
- Demagnetization is not required
- No untested zone on longitudinal & transversal edges
- Meets most of international standards & specifications
In Line
Specifications of plates to be tested
- Length 1 – 100 m and more
- Width 500 – 6000 mm
- Thickness 3 – 60 mm
- Material – carbon steel etc
- Temperature from -10 °C to +100 °C
- Test speed of up to 1 m/s
- Plates are on the roller conveyor
- Test capacity – up to 80 plates/hour (for 12 m long plates)
- Test is performed from above. Additional unit with PEC-
probes located under the plate is optional
Off Line
Specifications of plates to be tested
- Length 1 – 50 m
- Width 500 – 6000 mm
- Thickness 3 – 60 mm
- Material – carbon steel etc
- Temperature from -10 °C to +100 °C
- Test speed of up to 1 m/s
- Plates are on the floor or on the roller conveyor
- Test capacity – up to 12 plates/hour (for 12 m long plates)

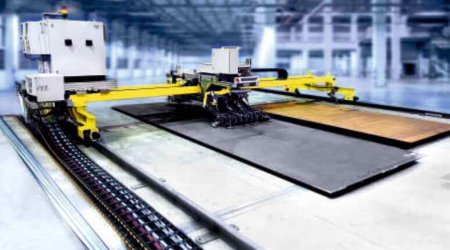

NORDISCAN-PL-HS+UT
Equipment for automatic off-line examination of plates for HARD SPOTS and Laminations
Salient Features
- Type of probes – PEC & Phase Array UT-probes (Hybrid probes)
- Simultaneous test for hard spots and laminations
- Perfect signal-to-noise ratio
- High and smooth Sensitivity
- Minimal hard spot to be detected 10mm x 10 mm or less
- Small or no untested zones at edges
- No influence of rolling scale
- No influence of residual magnetization
- Demagnetization is not required
- No untested zone on longitudinal & transversal edges
- Meets most of international standards & specifications
- Test capacity – up to 12 plates/hour (for 12 m long plates)
Specifications of plates to be tested
- Length 1 – 50 m
- Width 500 – 6000 mm
- Thickness 3 – 250 mm
- Material – carbon steel etc.
- Temperature from -10 °C to +100 °C
- Test speed of up to 1 m/s
- Plates are on the floor or on the roller conveyor
NORDISCAN-PL (Immersion)
Equipment for Immersion automatic off-line UT of plates and slabs made of titanium or aluminum
Salient Features
- Immersion test
- Perfect signal-to-noise ratio
- Types of probes – immersion phased array and conventional UT probes
- Layer-to-layer electronical scanning by phase array focusing technique
- Sensitivity – FBH 0.8 mm and higher
- Untested zones – 1.5 mm under surfaces
- Automatic calibration and verification
- Standards – AMS, NADCAP, BOEING, AIRBUS, ASTM, EN, IGC
- Reference test capacity, about – 10 m2/hour for thickest plate
Specifications of plates to be tested
- Length – from 3 m to 12 m
- Width 100 mm – 3000 mm
- Thickness 3-200 mm
- Material – Titanium or aluminum

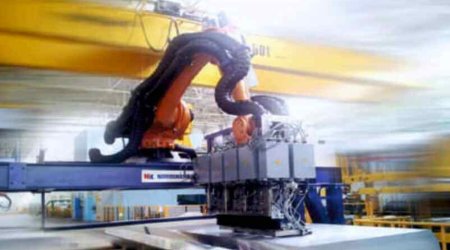

ALUTEST-PL (Non-Immersion)
Equipment for automatic off-line UT of aluminum plates and slabs
Salient Features
- Type of probes – phased Array UT-probes
- Sensitivity for internal defects – FBH-0.8 mm
- Sensitivity for surface defects – notch 0.2 mm x 10 mm (D x W)
- Automatic calibration and verification
- Standards AMS, NADCAP, BOEING, AIRBUS, ASTM, EN, IGC
- Reference test capacity: time for testing of one plate of 8 m x 3 m is about 30 min for thickest plate
Specifications of plates/slabs to be tested
- Length – from 1 m to 20 m
- Width 1-5 mm
- Thickness 3-800 mm
- Material aluminum, titanium
RIDER - NK
Push Cart for examination of plates
Salient Features
- UT or ECT based
- Perfect signal-to-noise ratio
- High & smooth sensitivity through the whole plate thickness
- Wide range of thicknesses
- Small untested zones
- Test capacity – up to 7 plates/hour (for 12 m x 4 m plates)
- Meets most of international standards & specifications

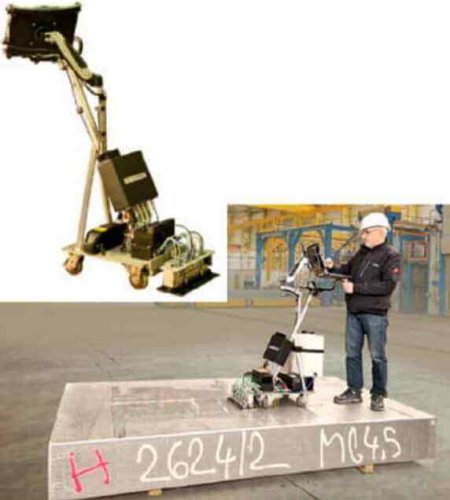

RIDER-NK-300
Ultrasonic examination of plates with TR PHASED ARRAY PROBES

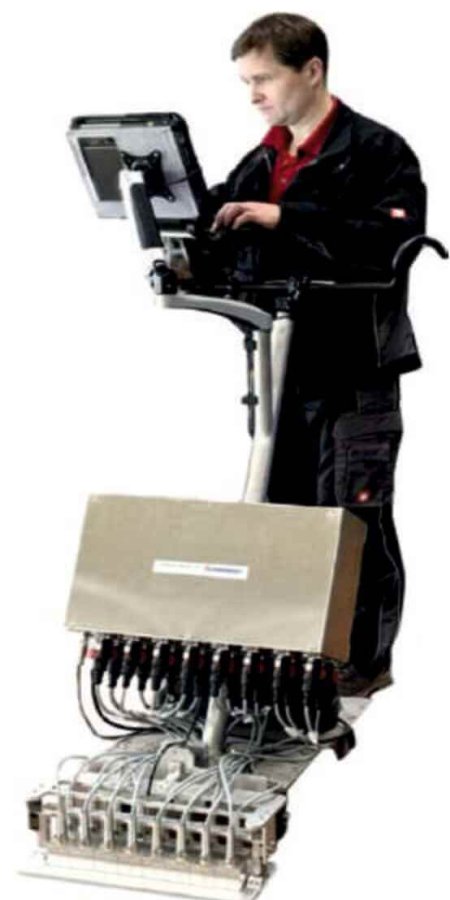

RIDER-NK-HS
Examination of plates for HARD SPOTS with PEC
Specifications of plates to be tested
- Length 1 – 50 m
- Width 500 – 6000 mm
- Thickness 3 – 250 mm
- Material – carbon steel etc.
- Temperature from +0 °C to +60 °C
- Plates are on the floor
- Wide range of thicknesses
- Small untested zones
- Meets most of international standards & specifications
Specifications of plates to be tested
- Length 1 – 50 m
- Width 500 – 6000 mm
- Thickness 3 – 250 mm
- Material – carbon steel etc.
- Temperature from +0 °C to +60 °C
- Plates are to be tested on the floor
- Minimal hard spot to be detected 10 mm x 10 mm or less
- Small or no untested zones at edges
- No influence of rolling scale
- No influence of residual magnetization
- Demagnetization is not required
